NavCam video camera

Main features common to 8120 & 8084

•Smart window splits for easy screen set-up : up to 4 windows simultaneously, with user's selection of screen size and contents
•SD C-Map NT Max delivers critical details and innovative features : land detail, live Nav-aids, birdseye views of ports, advanced port info, etc…
•Embedded 32 MB worldwide cartography
•50/200 kHz sonar : adjusts automatically the output power (1 kW or 600 W) to match the wattage of the transducer. No need for a separate sounder processor : you just need to connect the transducer you have selected to your 8120 or 8084 datahelm (see transducers page 70)
•Accepts all entertainment media (DVD, photos, waterproof video camera) via a video input.
•SmartCraft™ capability with Mercury and Mariner engines
•Fuel management (petrol or diesel) options available (see optional fuel kits page 53)
•Digital Radar with the addition of a radome : MARPA, Chart Overlay (see page 46)
•AIS compatible (see pages 46 and 50).

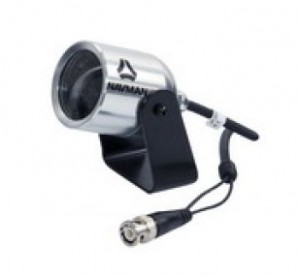

Small, high quality, waterproof camera that connects to the 8120 or 8084 video input.
Ideal to watch your engine room, the sides of the boat or to have a better control of mooring manoeuvres, etc…
Also operates in infra-red mode to give a monochrome thermal view of the surroundings.

•TV PAL/NTSC system
•Image sensor : 8.5 mm CCD
•45° viewing angle
•Max. distance : 10 m
•20 m cable with BNC connector
•IPx5 waterproof (st. steel casing)
